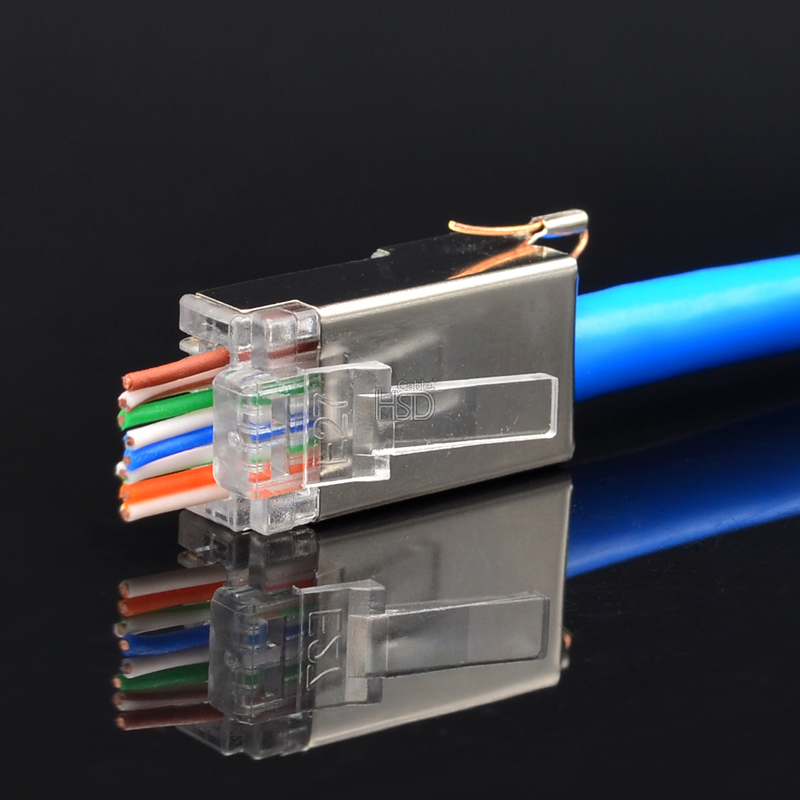

EZ Pass Through CAT5e/Cat6 RJ45 Shielded 8P8C With Ground Wire Connector
MODEL: HC-EZ-562
> Max Cable Outer Diameter: 0.240” (6.09mm)
> Max Insulation Diameter (Conductors): 0.040” (1.016mm)
> Meets ANSI/EIA/TIA/TAA specifications
> Solid or Stranded, 24AWG
> RoHS/FCC compliant
> 50 micron gold plated contacts
> Color: Clear/Transparent
> Max Insulation Diameter (Conductors): 0.040” (1.016mm)
> Meets ANSI/EIA/TIA/TAA specifications
> Solid or Stranded, 24AWG
> RoHS/FCC compliant
> 50 micron gold plated contacts
> Color: Clear/Transparent
|
EZ Pass Through CAT5e/Cat6 RJ45 Shielded 8P8C With Ground Wire Connector
The Original EZ-RJ45 CAT5e Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!
Crimp with one of the Platinum Tools EZ-RJ45 Crimp Tools.
|
