EZ RJ45 Connector Metal Shielded 8P8C For CAT5e
MODEL: HC-EZ-521
> Max Cable Outer Diameter: 0.240” (6.09mm)
> Max Insulation Diameter (Conductors): 0.040” (1.016mm)
> Meets ANSI/EIA/TIA/TAA specifications
> Solid or Stranded, 24AWG
> RoHS/FCC Compliant
> 50 micron gold plated contacts
> Copper Metal Shileded
> Color: Clear/Transparent
> Max Insulation Diameter (Conductors): 0.040” (1.016mm)
> Meets ANSI/EIA/TIA/TAA specifications
> Solid or Stranded, 24AWG
> RoHS/FCC Compliant
> 50 micron gold plated contacts
> Copper Metal Shileded
> Color: Clear/Transparent
|
EZ RJ45 Connector Metal Shielded 8P8C For CAT5e

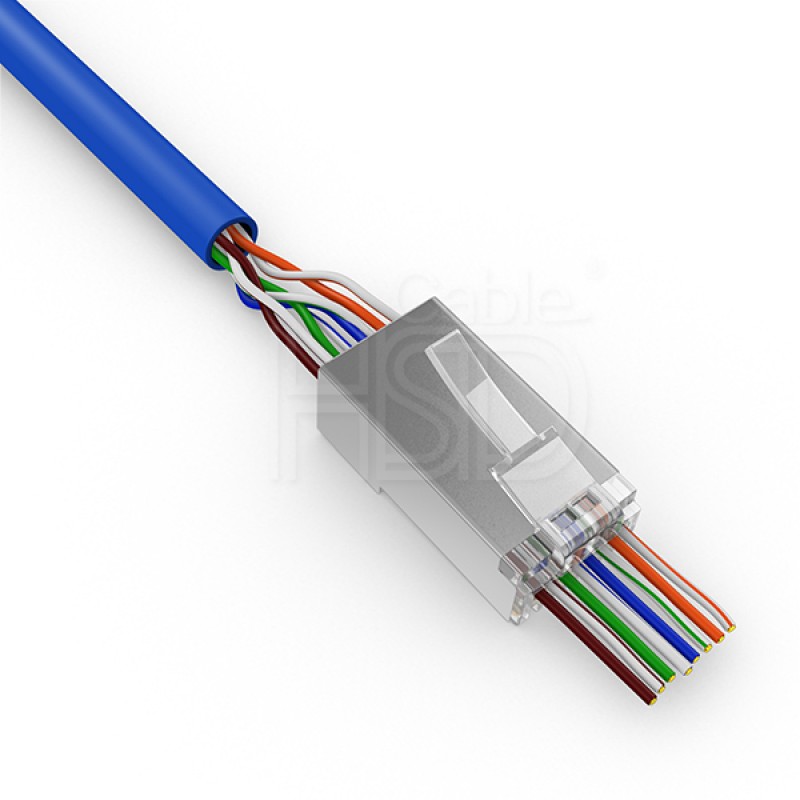

The Original EZ-RJ45 shielded CAT5 connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front for EZ verification of wiring sequence. Applications with RF problems or grounding requirements usually specify to use shielded cable & shielded connectors.
Crimp with one of the Platinum Tools EZ-RJ45 Crimp Tools.
|
